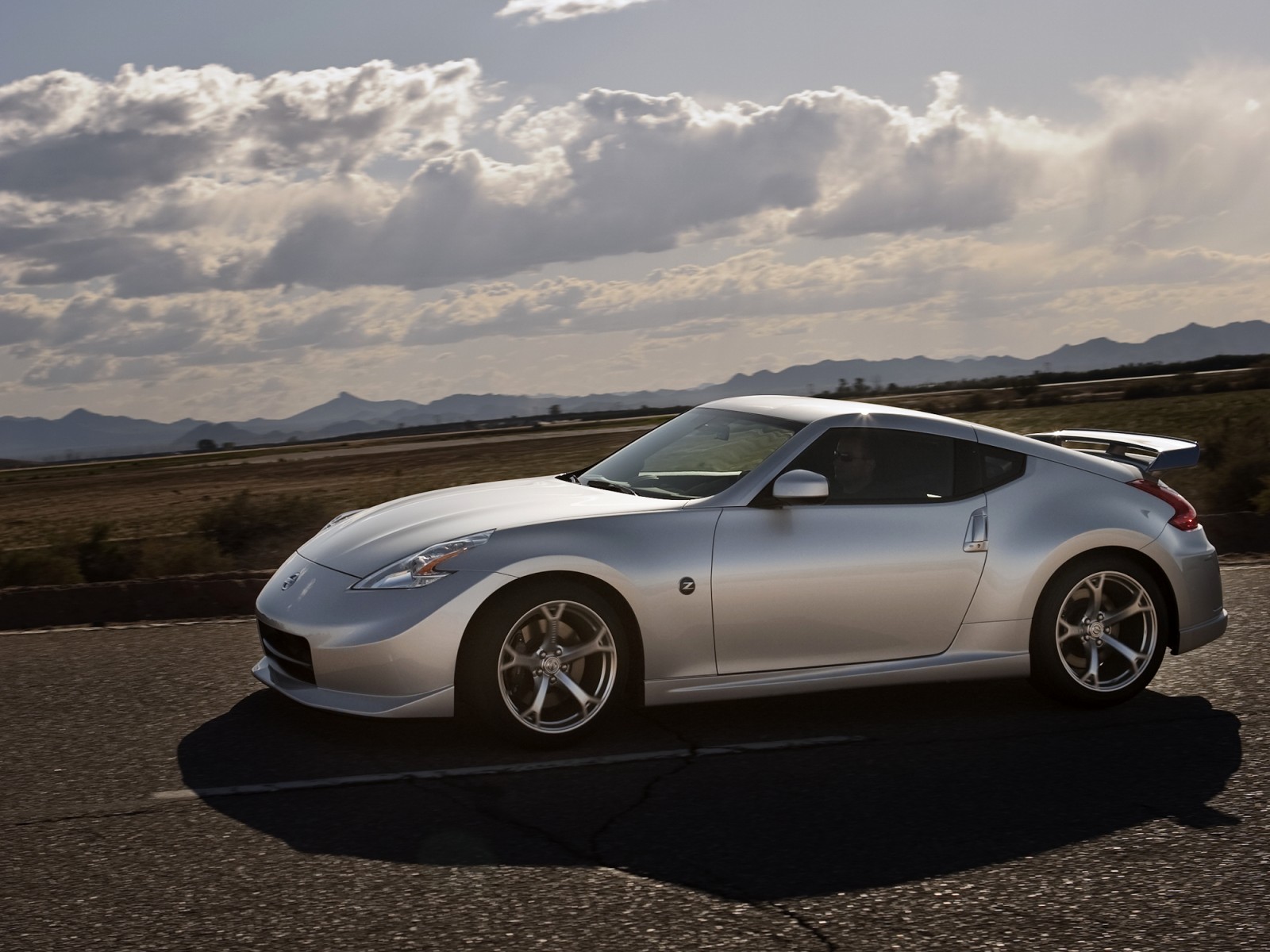

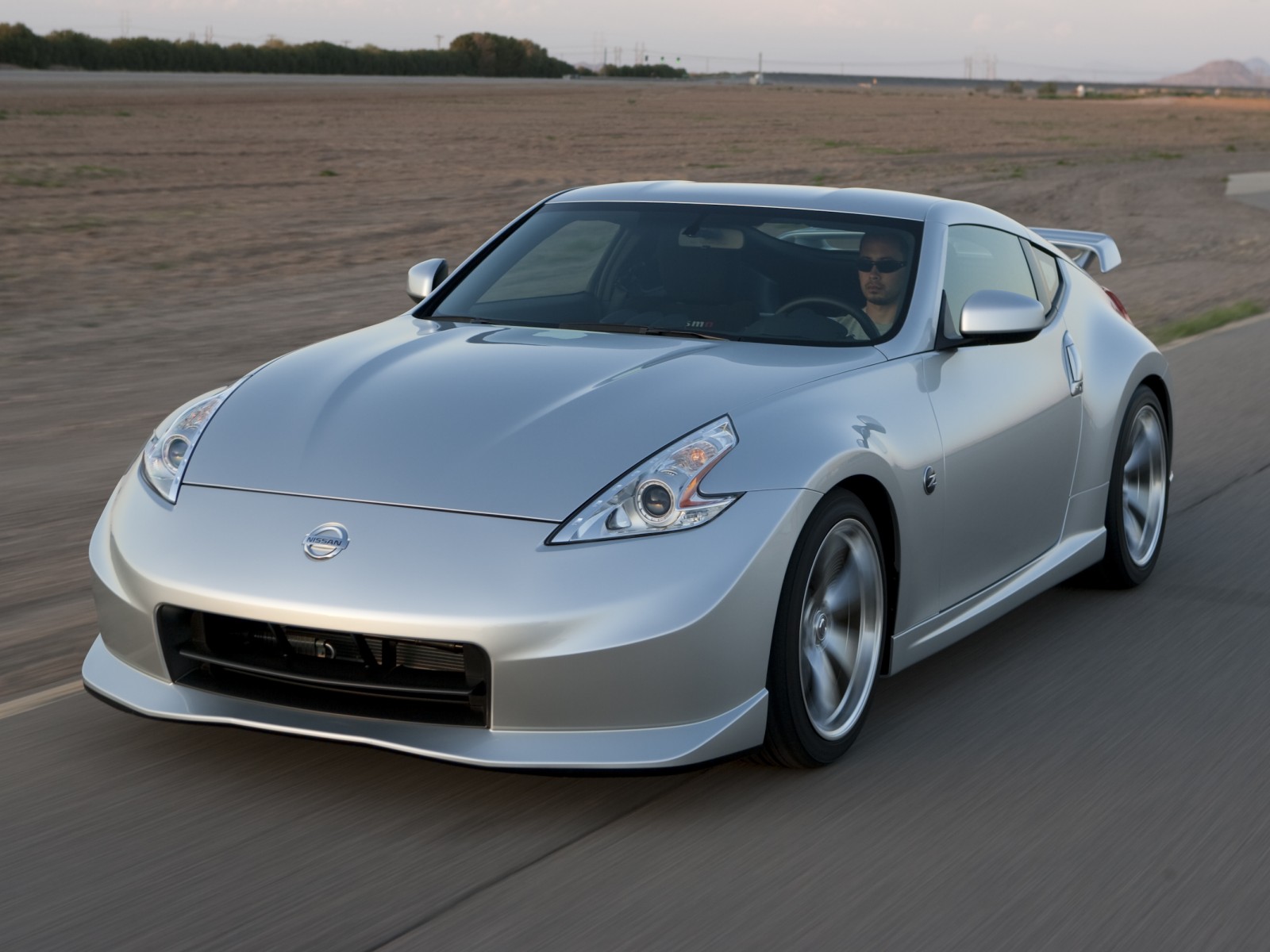

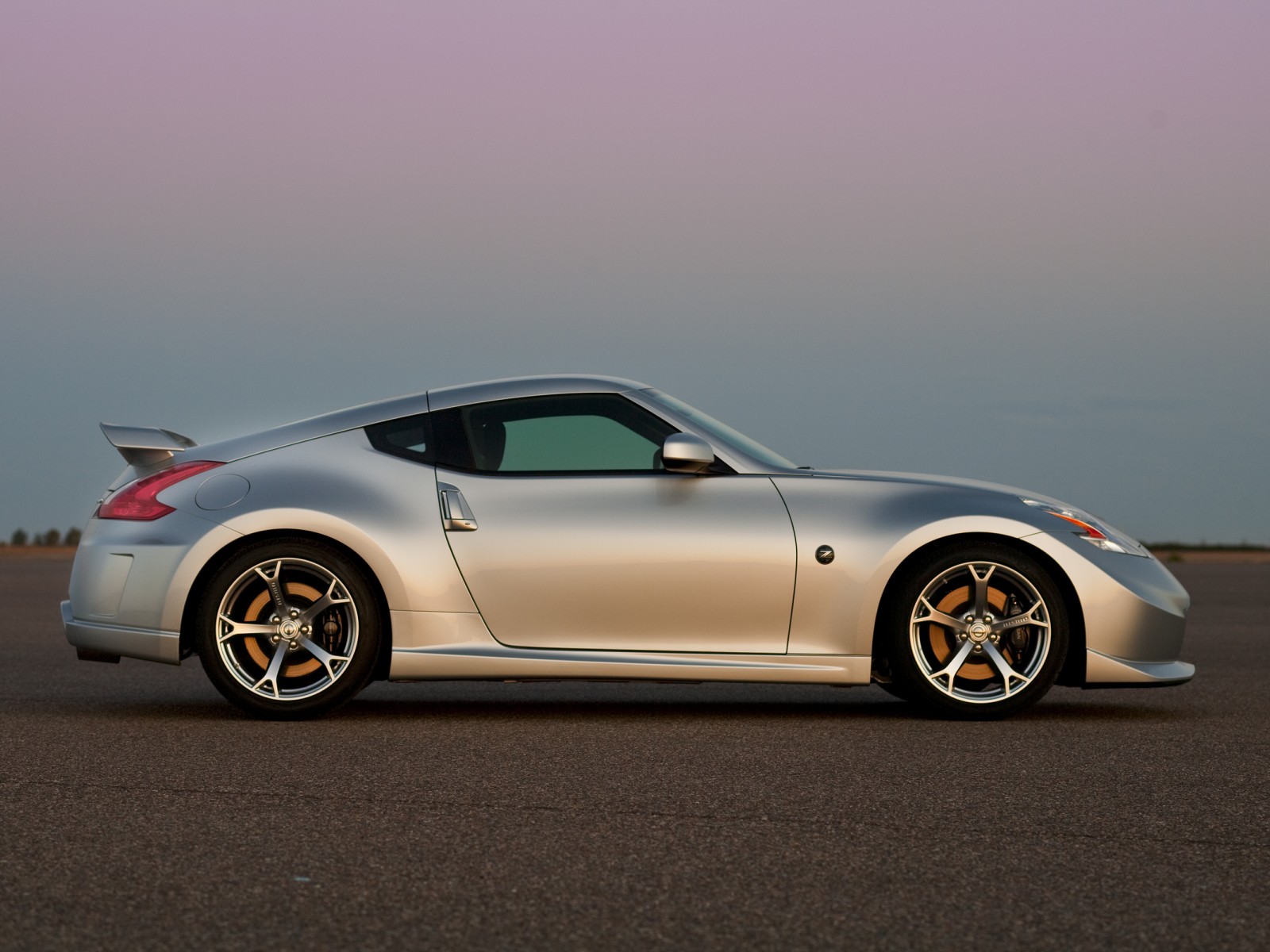

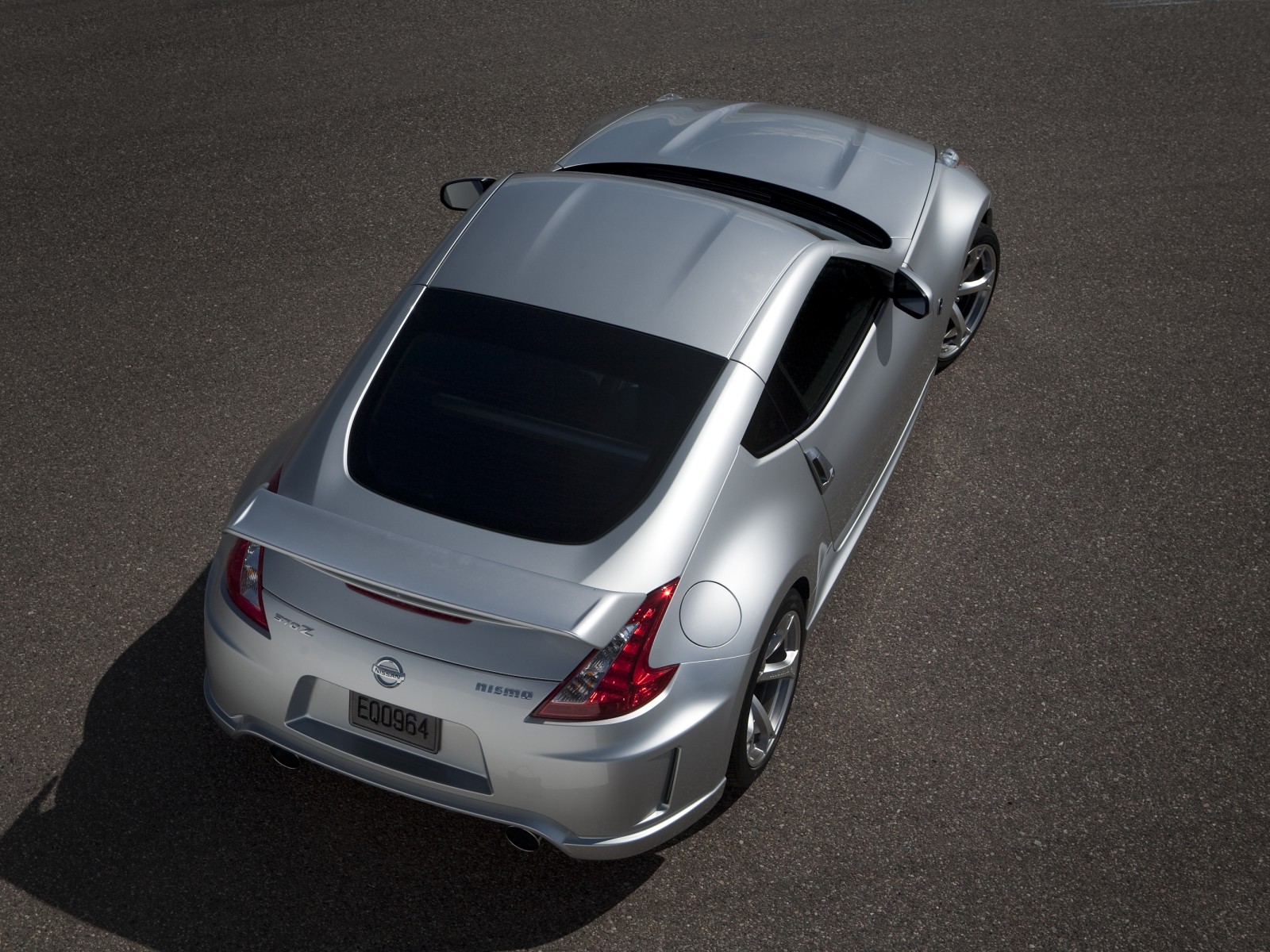

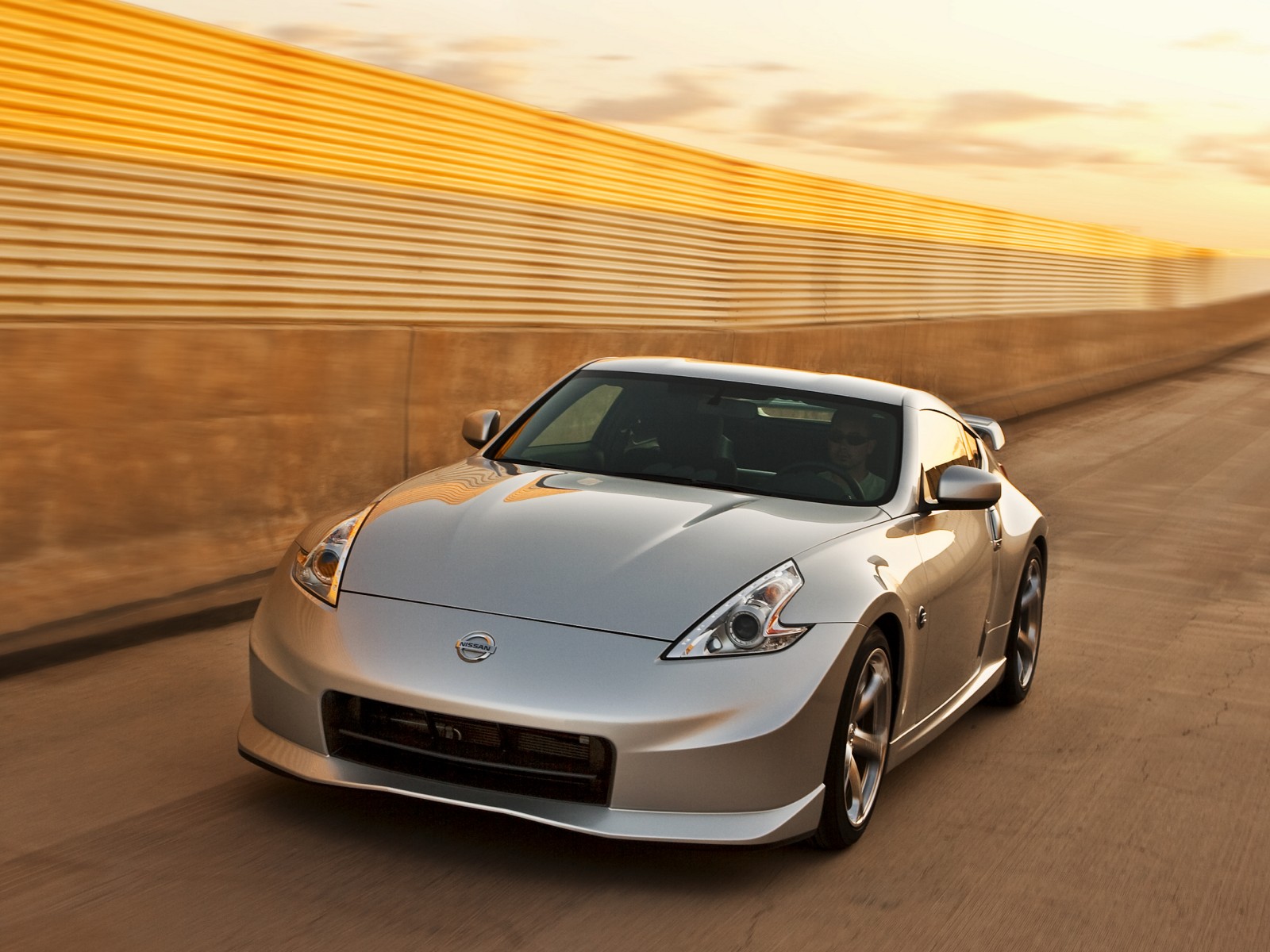

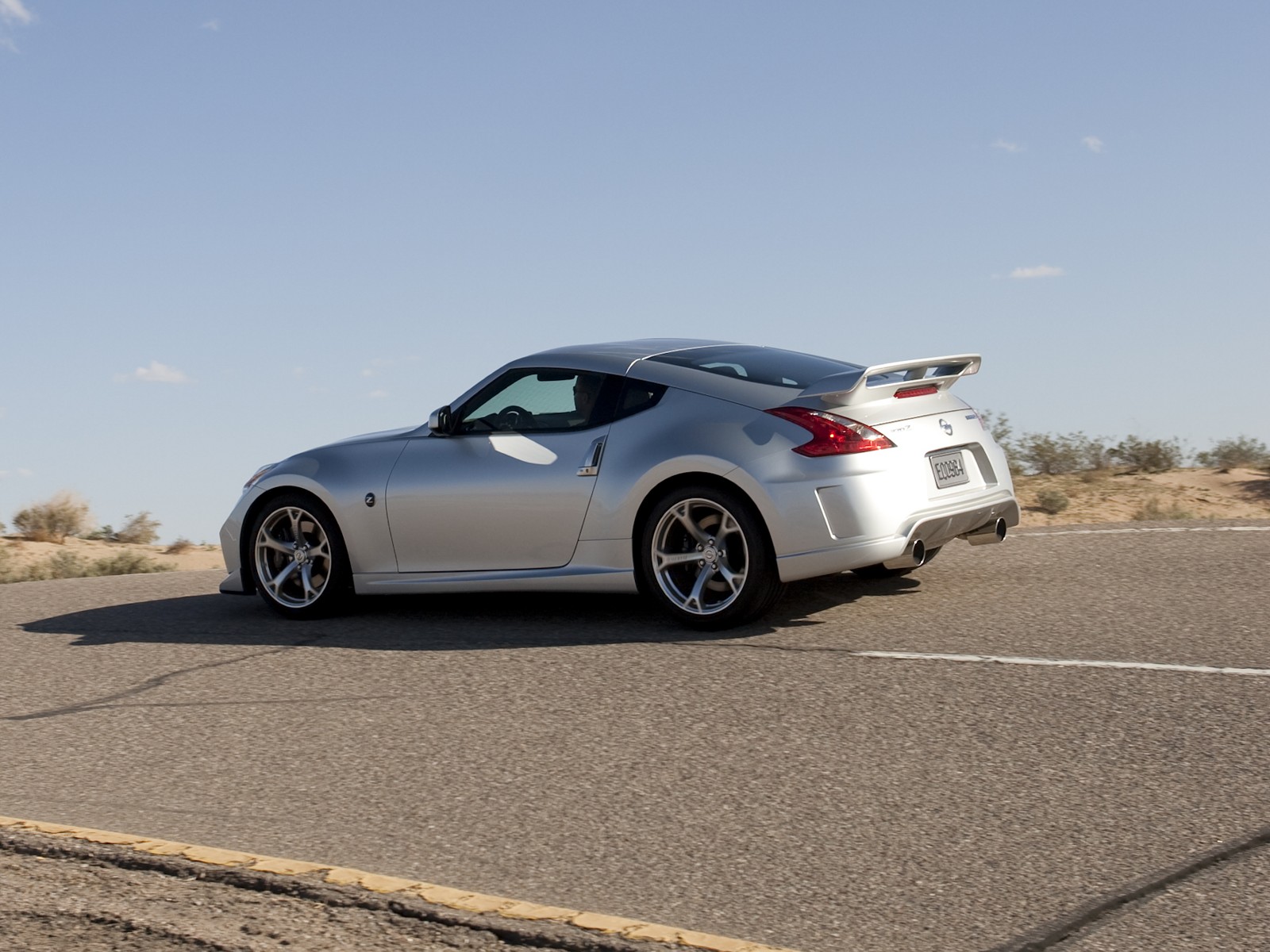

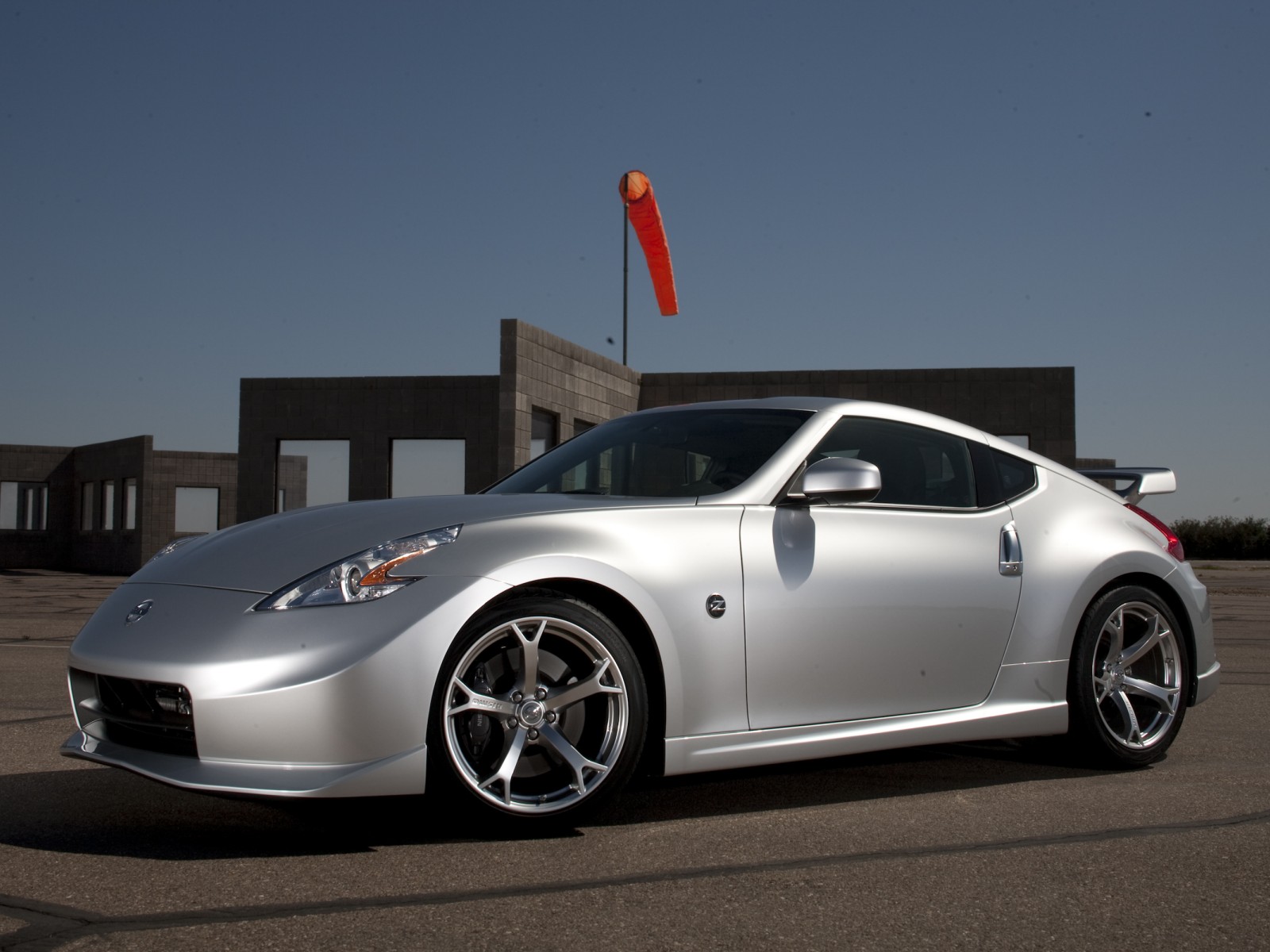

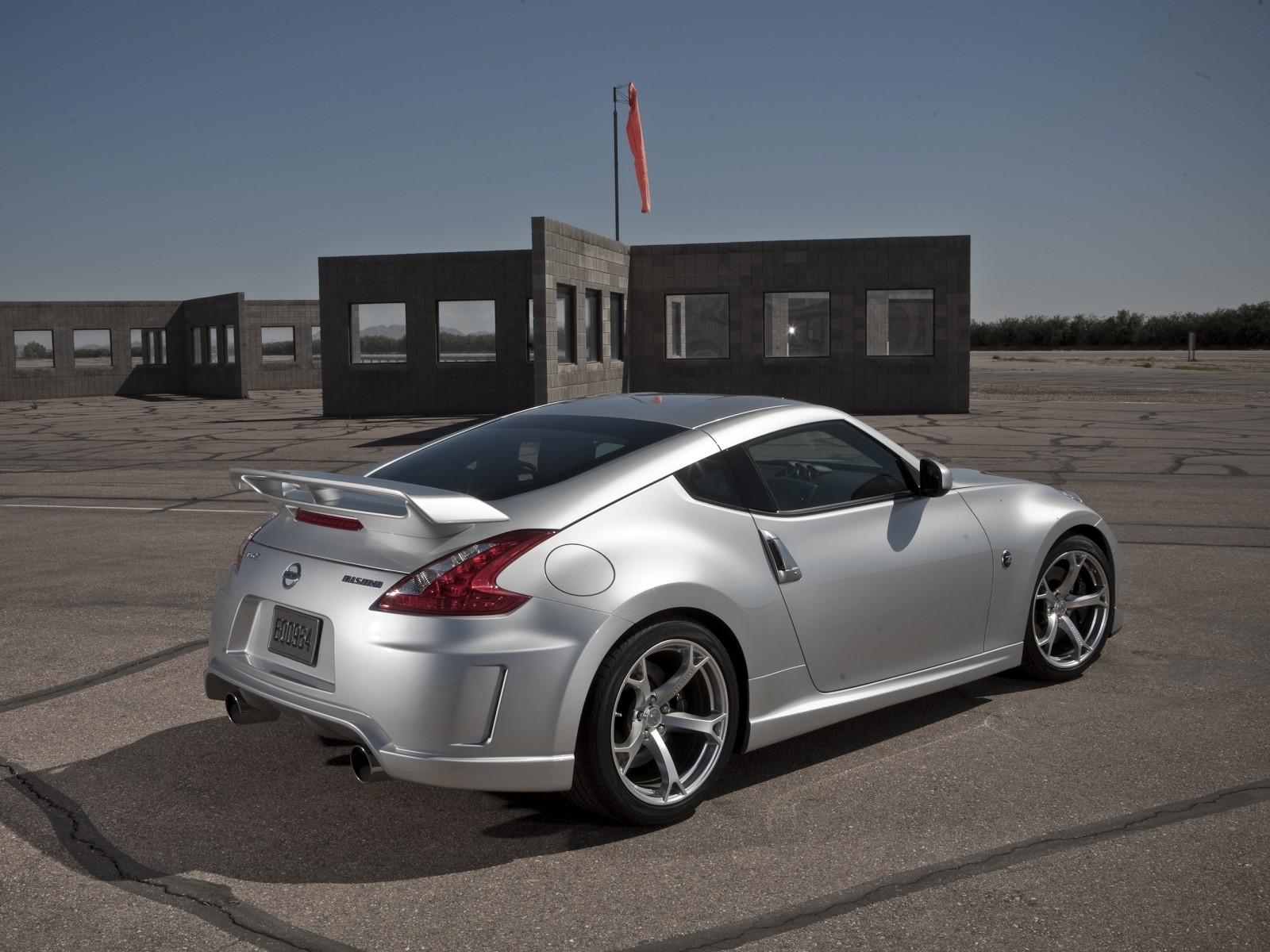

2009 Nissan 370Z Nismo
2009 Nissan 370Z Nismo Pictures & Specifications
Home »
Nissan
Pictures & Wallpapers
 |
 |
 |
 |
 |
 |
 |
 |
 |
Technical Specifications
Make: Nissan
Model: 370Z Nismo
Engine: 3.7 litre V6
Aspiration: Natural
Maximum Power: 350 hp (261 kW) @ 7400 rpm
Maximum Torque: 276 lb-ft (374 Nm) @ 5200 rpm
Transmission: Six-speed manual
Drivetrain: Rear-wheel drive
2009 Nissan 370Z Nismo
Nissan Press Release
7 April 2009
The all-new, second generation NISMO 370Z, which is set to go on sale at Nissan retailers nationwide in June 2009, continues the tradition of the original by offering unique performance and design attributes that true sports car enthusiasts are looking for – straight from the factory. Like the limited production NISMO 350Z introduced two years earlier, the new NISMO 370Z is a tuner-Z enthusiast’s dream, featuring a 350-horsepower 3.7-litre V6, racing-inspired exterior and interior styling, a specially tuned suspension and special super-lightweight 19-inch forged alloy wheels.
The 2009 NISMO 370Z was developed by NNA’s Specialty Vehicles Group in conjunction with Autech Japan, Nissan’s longstanding conversion partner.
“The NISMO name is known throughout the world as the leading supplier of race-bred, factory-tuned, extreme performance Nissan parts, accessories and vehicles,” said Al Castignetti, vice president and general manager, Nissan Division, Nissan North America, Inc. (NNA). “The new, second-generation NISMO Z proudly – and deservedly – wears the NISMO badge, carrying on the tradition of bringing racing-inspired performance and engineering to the street.”
The all-new NISMO 370Z is offered in one completely equipped model (no options) with a close-ratio 6-speed manual transmission only.
Dynamic Performance And Handling Comes Standard
The new NISMO 370Z starts with the unmatched foundation of an advanced Nissan FM (Front Midship) platform, refined 4-wheel independent suspension and 3.7-litre DOHC V6 engine with Variable Valve Event and Lift Control (VVEL). The VVEL system helps optimise intake valve open/close movements, allowing the needed air to be sent promptly to the combustion chamber at the precisely optimised time. For its use in the NISMO 370Z, the 3.7-litre VQ-series V6 produces 350 hp @ 7,400 rpm and 276 lb-ft of torque @ 5,200 rpm. The NISMO Z’s enhanced engine power and acceleration is provided through use of an exclusive H-configured exhaust system design and muffler tuning, along with optimised ECM (Engine Computer Module) control.
The NISMO 370Z is offered only with a close-ratio 6-speed manual transmission with Nissan’s new “SynchroRev Match” function, the world’s first synchronised downshift rev matching manual transmission system. The “SynchroRev Match” function automatically controls and adjusts engine speed when shifting to the speed of the next gear position, essentially “blipping” the throttle to smooth out any up/down shifts. This not only allows the driver to focus more on braking and steering, it improves vehicle balance and smoothness by reducing the typical “shock” when the clutch is engaged. The system can be deactivated with a button next to the shifter for drivers who prefer less vehicle intervention.
The NISMO 370Z features a tight, rigid body structure with a strut tower bar brace and a pair of performance dampers, which quickly and efficiently react to and control body vibrations from road input via the tyres, contributing to the NISMO 370Z’s outstanding stability and performance feel.
The NISMO Z’s double-wishbone front/4-link rear suspension design suspension is specially tuned for exceptional stability and handling. Compared to a standard Nissan 370Z Coupe, front spring rates have been dialled up 15%, rear spring rates 10%, front stabiliser bar rate upped 15% and the rear stabiliser bar is 50% stiffer. The roll stiffness rate has been increased by 15% and front and rear damping factors have been increased by 40% and 140% respectively.
The NISMO 370Z rides on unique 5-spoke Nissan-branded 19-inch RAYS forged aluminium-alloy wheels (19×9.5-inch front, 19×10.5-inch rear) mounted with Yokohama ADVAN Sport Y-rated high-performance tyres (P245/40ZR19 front, P285/35ZR19 rear).
Bringing the NISMO 370Z to a stop are standard NISMO Sport Brakes with large diameter 14.0-inch front and 13.8-inch rear vented rotors with 4-piston front and 2-piston rear aluminium callipers. The braking system also includes a variable ratio brake pedal for a more direct pedal stroke feel, Anti-Lock Braking System (ABS), Electronic Brake force Distribution (EBD) and Brake Assist (BA). A Viscous Limited-Slip Differential (VLSD) is standard on all NISMO 370Zs, along with Vehicle Dynamic Control (VDC).
Responsive steering is provided by a vehicle-speed-sensitive power-assisted rack-and-pinion design that has been reworked (versus the NISMO 350Z design) with redesigned mounting bushings and a column insulator to provide improved response. Unwanted steering kickback and vibrations are reduced with the use of a solenoid valve that acts like a damper when there is a harsh impact load.
Unique NISMO 370Z Exterior and Interior
Along with its standout performance, the new NISMO Z offers a standout appearance inside and out. The functional and fully integrated aerodynamic body pieces include an extended front nose design with a canard design at each corner for improved downforce and a fully integrated chin spoiler. The NISMO 370Z has an overall length of 174.3 inches.

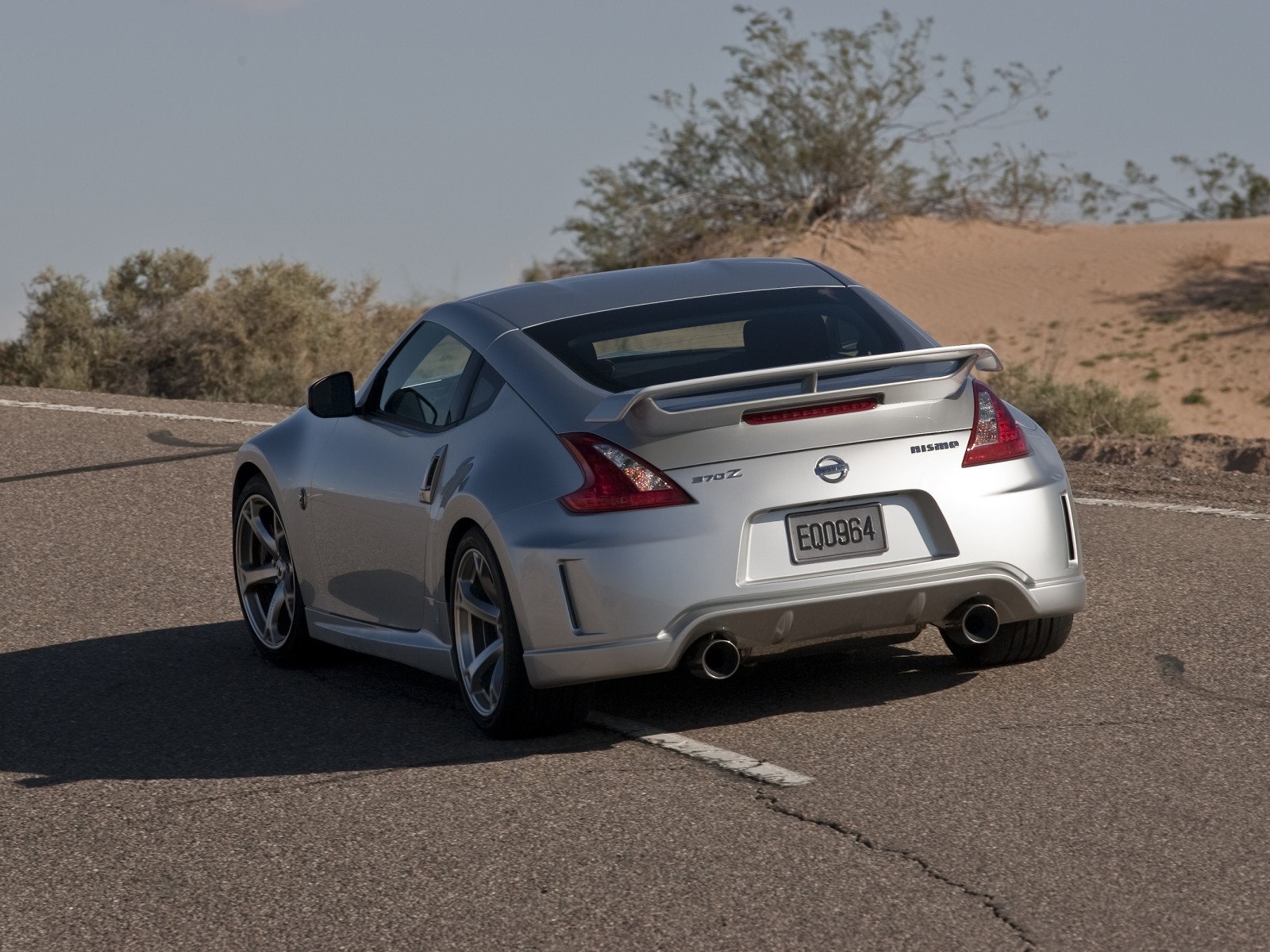

Special side sills and a unique rear bumper help control airflow under the vehicle, while the functional rear spoiler increases downforce. The NISMO 370Z exterior also includes a wide stance, sculptural fenders, upswept quarter windows, bold “boomerang” shaped headlights and taillights, vertical door handles and aluminium hood, door panels and hatchback. The headlights are a High Intensity Discharge (HID) bi-functional xenon design with an auto on/off feature.
“One look at the dramatic NISMO 370Z body and you know that this isn’t your everyday sports car,” said Castignetti. “The styling is highly emotional yet totally functional – expressing dynamic movement while enhancing airflow and downforce for enhanced aerodynamic performance.”
The NISMO 370Z is offered in five exterior colours: Pearl White, Brilliant Silver, Magnetic Black, Solid Red and Platinum Graphite.
The NISMO 370Z’s driver-centric interior includes NISMO logo seats with black and red fabric and red stitching, a NISMO tachometer, steering wheel with smooth leather and red parallel stitching, smooth leather-wrapped shift knob and aluminium trimmed pedals. A special serialised plaque of authenticity, located on the vertical panel above the floor-mounted console, is matched to each NISMO Z, identifying its unique serial and model year designation.
The NISMO 370Z’s 2-seat interior layout is built around a deeply scooped instrument panel with a full-length center console separating the driver and passenger’s seat. In the rear is an open cargo area with enhanced storage and accessibility. The instrument panel includes a 3-pod cluster with oil temperature, voltmeter and clock, while the speedometer and tachometer include an “initial sweep” function, coming alive when the NISMO Z is first started.
Both the driver and passenger’s seats are structured with an anti-slip material in the main seating surface. The sporty woven cloth seats feature standard 8-way driver’s/4-way passenger manual adjustments. Adjustable front seat Active Head Restraints are standard.
Standard interior comfort and convenience features include Nissan Intelligent Key with Push Button Start, power windows with one-touch auto up/down feature, power door locks with auto-lock feature, a center console box with a new non-intrusive cover design, automatic climate control, rear window defroster with timer, two 12-volt power outlets, four cupholders (two in door panels, two in center console), dual overhead map lights and a AM/FM/CD/AUX 4-speaker audio system with illuminated steering wheel-mounted controls.
“The NISMO logo is prominent throughout the cabin, reinforcing the mission and special capability of the vehicle,” said Castignetti. “The NISMO Z is the complete package – inside, outside and under the skin.”
The NISMO Z’s long list of standard safety and security features includes the Nissan Advanced Air Bag System (AABS) with dual-stage supplemental front air bags with seat belt and occupant classification sensors; front seat-mounted side impact supplemental air bags; roof-mounted side-impact air bags; seat belts with pretensioners and load limiters, Active Head Restraints, Zone Body Construction with front and rear crumple zones, Nissan Vehicle Immobiliser System, Vehicle Security System and Tyre Pressure Monitoring System (TPMS).
